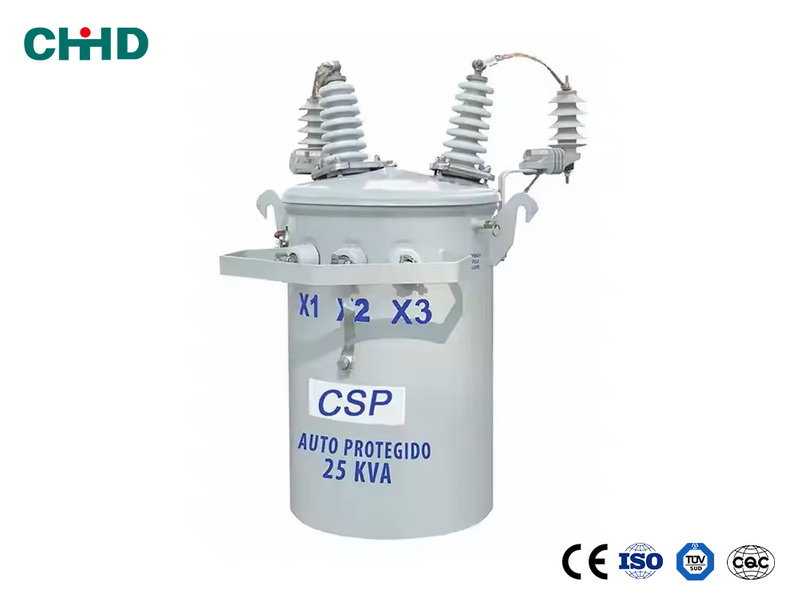

Product Overview
A single-phase transformer is a type of electrical device that transfers electrical energy between two or more circuits through electromagnetic induction. It operates on a single-phase alternating current (AC) supply and is widely used in various applications, including residential, commercial, and industrial settings. Single-phase transformers are known for their simplicity, compact design, and reliability.
Key Features
1. Compact Design: Single-phase transformers have a smaller footprint compared to three-phase transformers, making them suitable for applications where space is limited.
2. Simplicity of Operation: They are easy to install and operate, providing an efficient solution for low-power applications.
3. Versatile Applications: Single-phase transformers are used in a variety of applications, including power supply for residential buildings, lighting systems, and small industrial equipment.
4. Cost-Effective: Generally more affordable than three-phase transformers, making them a cost-effective option for lower power requirements.
5. High Efficiency: Designed to minimize losses, single-phase transformers offer high efficiency in power transmission and distribution.
6. Low Maintenance: With fewer components and a simpler design, these transformers require less maintenance, reducing overall operational costs.
Application Areas
Residential Power Supply: Commonly used to step down voltage for household appliances and lighting systems.
Commercial Use: Utilized in retail stores, offices, and other commercial establishments to provide power to lighting and equipment.
Industrial Applications: Used in small manufacturing facilities for powering machinery and equipment.
Technical Parameters
Rated Power: Available in various power ratings, typically ranging from a few VA to several kVA, to suit different applications.
Rated Voltage: Customizable voltage levels, commonly including 120V, 240V, or others as per specific requirements.
Cooling Method: Often air-cooled, with some models featuring oil cooling for higher power ratings to enhance efficiency and reliability.
Conclusion
The single-phase transformer is an essential device in electrical systems, providing reliable voltage transformation for a wide range of applications. Its compact design, efficiency, and cost-effectiveness make it a preferred choice for residential, commercial, and industrial power supply needs. Our company offers a variety of single-phase transformers tailored to meet specific customer requirements, ensuring safe and efficient operation in various environments.
| Rated Power(kVA) | High vlotage(V) | LoW vlotage(V) | No load loss（W) | On load loss(W) | W（mm） | D（mm） | H（mm） |
| 10 | 13800 7957 13200 7620 12470 7200 | 120-240 240-480 | 36 | 120 | 500 | 525 | 885 |
| 15 | 50 | 195 | 520 | 565 | 905 | ||
| 25 | 80 | 290 | 560 | 590 | 935 | ||
| 37.5 | 105 | 360 | 610 | 625 | 935 | ||
| 50 | 135 | 500 | 635 | 675 | 1035 | ||
| 75 | 190 | 650 | 745 | 840 | 1035 | ||
| 100 | 210 | 850 | 770 | 965 | 1135 | ||
| 167 | 350 | 1410 | 795 | 890 | 1335 |
| Key attributes | |
| Use | Electronic |
| Phase | Single |
| Coil Structure | TOROIDAL |
| Coil Number | AUTOTRANSFORMER |
| Other attributes | |
| Place of Origin | Yangzhou Jiangsu China |
| Brand Name | HuaDing |
| Model Number | D11 |
| Input Voltage | 13.8KV，13.2KV，10KV |
| Output Voltage | 220V，380V |
| Transformer type | Oil |
| Cooling Method | Air Cooling |
| Connection Group | Lio |
| Material | Al/Cu |
| Rated Capacity | 10-167VA |
| Certificate | ISO9001 |
| Standard | IEC |
| Warranty | 2 years |
| Product Specifications and Model | Standard | Quantity (Units) | Price (USD) | |
| DL-10/7.62 | Aluminum , IEC | 1 | 630 | |
| DL-15/7.62 | Aluminum , IEC | 1 | 1020 | |
| DL-25/7.62 | Aluminum , IEC | 1 | 1300 | |
| DL-37.5/7.62 | Aluminum , IEC | 1 | 1360 | |
| DL-50/7.62 | Aluminum , IEC | 1 | 1480 | |
| DL-75/7.62 | Aluminum , IEC | 1 | 1670 | |
| DL-100/7.62 | Aluminum , IEC | 1 | 1815 | |
| DL-167/7.62 | Aluminum , IEC | 1 | 2485 | |
| PS：Ex-factory Price for Standard Product,Custom Products Available for Inquiry. | ||||
