Product Overview
Epoxy resin cast dry-type transformers are advanced electrical devices designed for high reliability and safety. These transformers are encased in a robust epoxy resin, offering excellent insulation properties and environmental resistance. They are widely used in various applications, including industrial plants, commercial buildings, and renewable energy systems.
Key Features
1. Superior Insulation: The epoxy resin provides excellent electrical insulation, ensuring reliable performance and long service life under harsh conditions.
2. High Moisture and Corrosion Resistance: The resin coating protects the transformer from moisture, dust, and corrosive environments, making it suitable for outdoor and industrial applications.
3. Fire Safety: The non-flammable properties of epoxy resin reduce the risk of fire hazards, ensuring safe operation in sensitive environments.
4. Compact Design: These transformers have a smaller footprint compared to traditional oil-immersed transformers, allowing for easy installation in limited spaces.
5. Low Noise Levels: The design minimizes operational noise, making them suitable for use in residential and commercial areas.
6. Maintenance-Free: The dry-type design eliminates the need for regular maintenance associated with oil-based transformers, reducing long-term operational costs.
Technical Parameters
· Rated Voltage: Customizable based on customer requirements
· Capacity Range: Rated power from tens of kilovolt-amperes (kVA) to several thousand kilovolt-amperes (kVA), meeting the needs of various applications.
· Cooling Method: Natural air cooling (ONAN)or air forced cooling(ONAF)
· Protection Level: IP20, IP23, or customizable according to project needs
Application Fields
· Industrial Facilities: Used in factories, mines, and manufacturing plants for power distribution.
· Commercial Buildings: Suitable for shopping malls, hotels, and office complexes.
· Renewable Energy: Ideal for connecting solar power and wind energy systems.
· Public Infrastructure: Employed in schools, hospitals, and government buildings.
Conclusion
Epoxy resin cast dry-type transformers are designed for enhanced safety, reliability, and efficiency in various applications. Huading Electric is dedicated to providing high-quality products that meet the needs of modern electrical systems while ensuring environmental sustainability. Through continuous innovation, we aim to deliver solutions that enhance operational performance and safety for our customers.
Product Model | Rated Capacity(kVA) | HV(KV) | Tapping Range(%) | LV(KV) | Connection Group | No-load Loss(W) | load loss (W)(120℃) | Short-circuit Impedance(%) | Dimensions (Length ×Width × Height) (mm) | Gauge(mm) | Total Weight(KG) |
SC(B)11-50/35 | 50 | 35 36 37 38.5 | ±5 ±2×2.5 | 0.4 | Yyn0 Dyn11 | 405 | 1420 | 6 | 1020*650*1330 | 500*600 | 680 |
SC(B)11-100/35 | 100 | 565 | 2090 | 6 | 1090*760*1405 | 660*660 | 920 | ||||
SC(B)11-160/35 | 160 | 710 | 2810 | 6 | 1360*850*1475 | 660*820 | 1250 | ||||
SC(B)11-200/35 | 200 | 790 | 3320 | 6 | 1410*920*1490 | 660*820 | 1300 | ||||
SC(B)11-250/35 | 250 | 890 | 3800 | 6 | 1500*920*1645 | 820*820 | 1600 | ||||
SC(B)11-315/35 | 315 | 1050 | 4510 | 6 | 1580*920*1860 | 820*820 | 2100 | ||||
SC(B)11-400/35 | 400 | 1230 | 5410 | 6 | 1580*920*1860 | 820*820 | 2300 | ||||
SCB11-500/35 | 500 | 1450 | 6650 | 6 | 1800*1200*1535 | 1070*1070 | 2730 | ||||
SCB11-630/35 | 630 | 1670 | 7690 | 6 | 1850*1200*1650 | 1070*1070 | 3270 | ||||
SCB11-800/35 | 800 | 1940 | 9120 | 6 | 1870*1200*1645 | 1070*1070 | 3630 | ||||
SCB11-1000/35 | 1000 | 2180 | 10400 | 6 | 1860*1200*1735 | 1070*1070 | 4280 | ||||
SCB11-1250/35 | 1250 | 2540 | 12700 | 6 | 1800*1200*1840 | 1070*1070 | 4500 | ||||
SCB11-1600/35 | 1600 | 2910 | 15400 | 6 | 1920*1200*1750 | 1070*1070 | 5280 | ||||
SCB11-2000/35 | 2000 | 3430 | 18200 | 6 | 2060*1200*1810 | 1070*1070 | 6420 | ||||
SCB11-2500/35 | 2500 | 4000 | 21800 | 6 | 2120*1200*1835 | 1070*1070 | 7270 |
Key attributes | |
Phase | Three |
Other attributes | |
Place of Origin | Jiangsu, China |
Brand Name | HuaDing |
Model Number | SC(B)11 |
Coil Number | 3 |
Use | power |
Coil Structure | layer coil |
Certification | CE ISO |
Standard | IEC60076 |
Type | Distribution Transformer |
Frequency | 50/60HZ |
Input Voltage | 35-38.5kV |
Output Voltage | 0.38-0.44kV |
Tapping Range | ±5,±2×2.5 |
Warranty | 2 Years |
Winding material | Copper\Aluminum |
Cooling Method | AN/AF |
Ambient Temperature | ‘-25℃ to 40℃ |
Operating Altitude | Below 1000 meters |
Quantity (Pieces) | 1-5 | 6-10 | >10 |
Delivery Time (Days) | 25 | 30 | To be determined |
Product Specifications and Model | Standard | Quantity (Units) | Price (USD) | ||
SCBL11-400/35/0.4 | Aluminum , IEC | 1 | 7785 | ||
SCBL11-500/35/0.4 | Aluminum , IEC | 1 | 8355 | ||
SCBL11-630/35/0.4 | Aluminum , IEC | 1 | 9225 | ||
SCBL11-800/35/0.4 | Aluminum , IEC | 1 | 10195 | ||
SCBL11-1000/35/0.4 | Aluminum , IEC | 1 | 12385 | ||
SCBL11-1250/35/0.4 | Aluminum , IEC | 1 | 13805 | ||
SCBL11-1600/35/0.4 | Aluminum , IEC | 1 | 15970 | ||
SCBL11-2000/35/0.4 | Aluminum , IEC | 1 | 19360 | ||
SCBL11-2500/35/0.4 | Aluminum , IEC | 1 | 24080 | ||
PS:Ex-factory Price for Standard Product,Custom Products Available for Inquiry. |

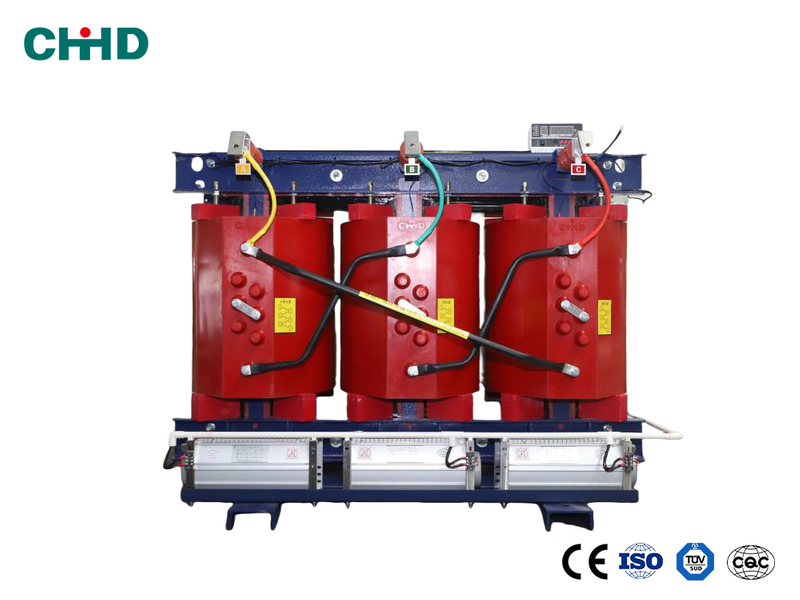

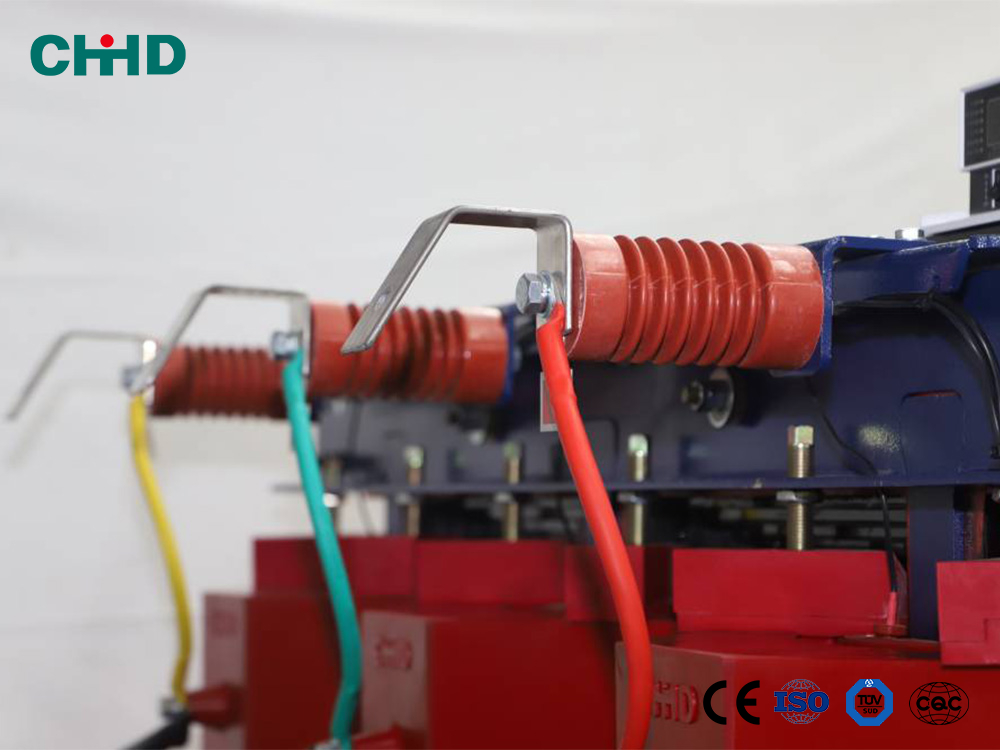

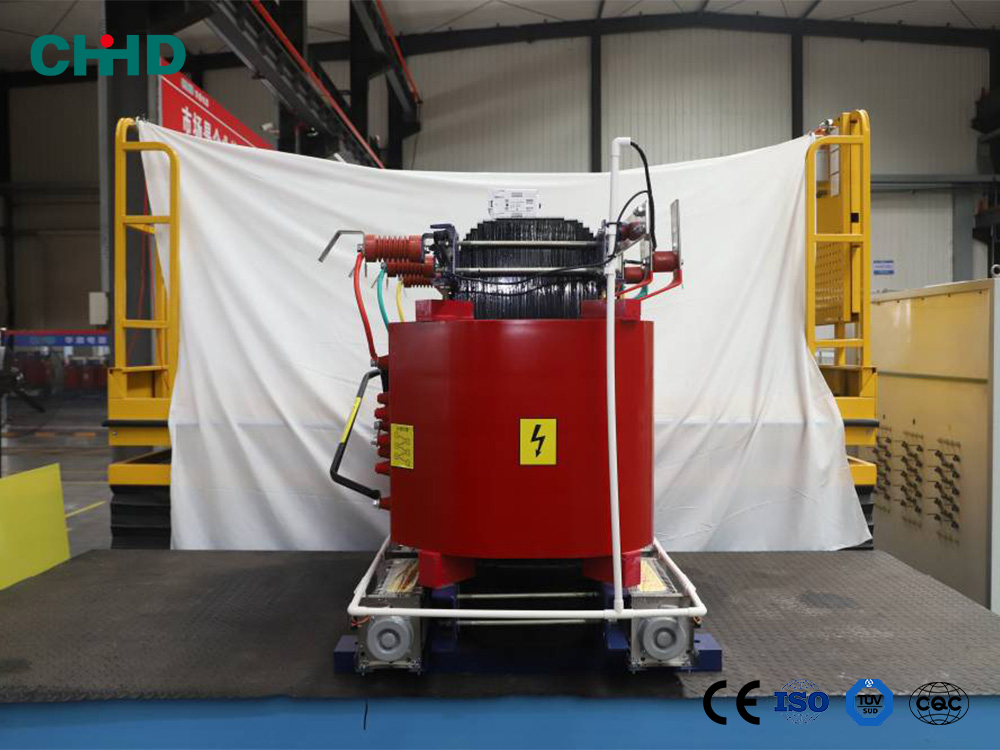

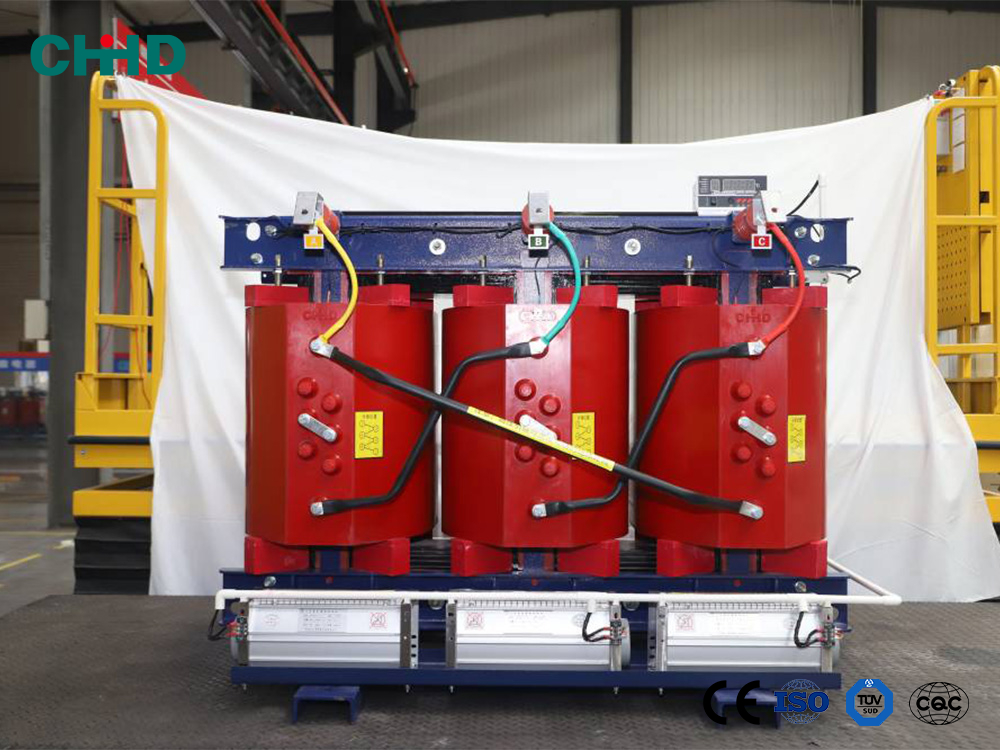

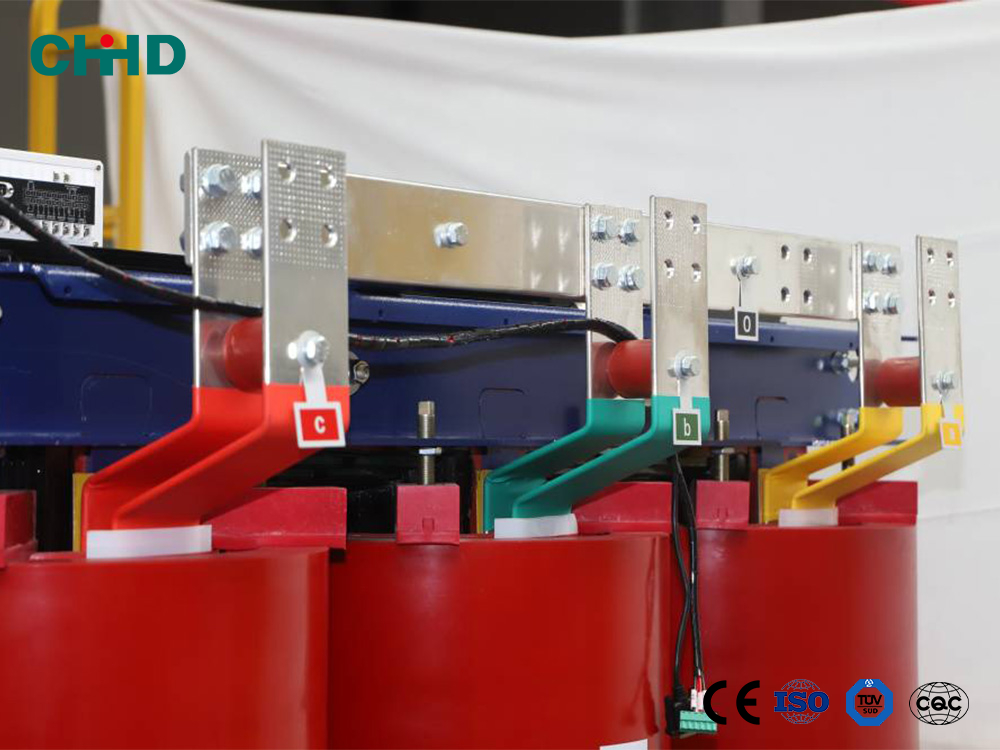

Dry Type Transformer

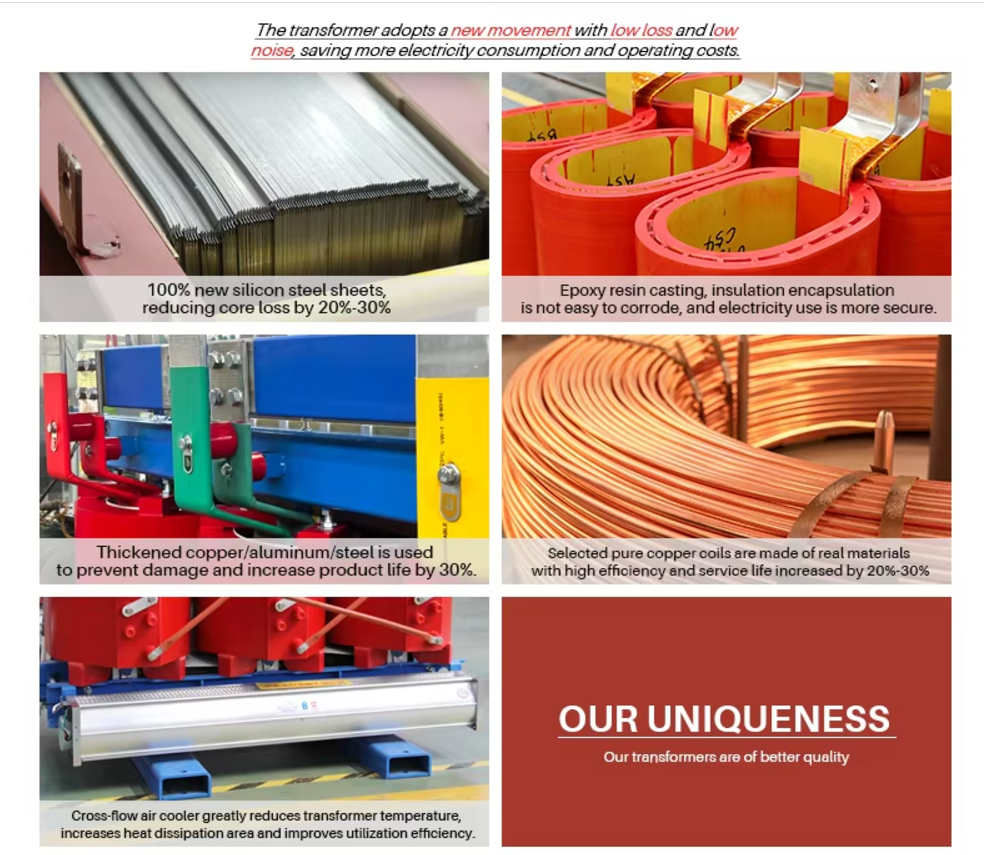

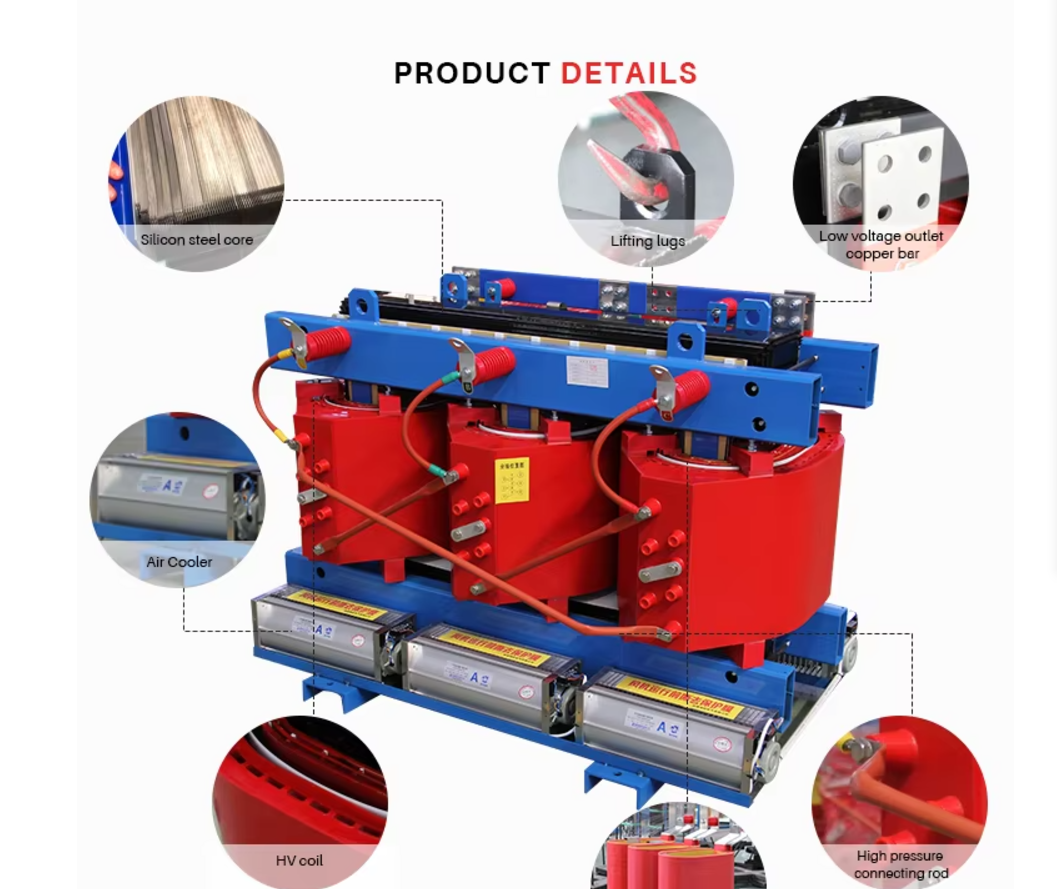

Products advantages:
Dry-type transformer(Epoxy Resin cast)
Overload capacity, and flame-retardant performance
Maintenance-free, and excellent moisture-proof performance
Low loss and low partial discharge
Certifications
FAQ
Q:what's your major products?
A: oil immersed transformer, dry type transformer, Transformer Substation, High and Low Voltage Switchgear
Q: Can your product be customized?
A: Considering differences in voltage, frequency and other speciality of transformer product in different countries and regions, our product can be customized according to your requirements
Q: When can l get the price?
A:Usually we quote within 24 hours after we get your inquiry.
Q: What about lead or shipping time?
A: The lead time depends on the quantity you ordered, generally within 15 days upon receipt of advance payment.
Q: What is the price of shipping?
A: Depending upon the port of delivery, prices varies.
Q: Do you offer guarantee for the products?
A: Yes. We offer at least two years guarantee for all of our transformers.
Q: Your Advantage?
A: 61 years experience, Advanced production equipment, Stable quality, Fast delivery, Professional & good ⪻ompt service. Also some free parts can be provided for you.
