Product Overview

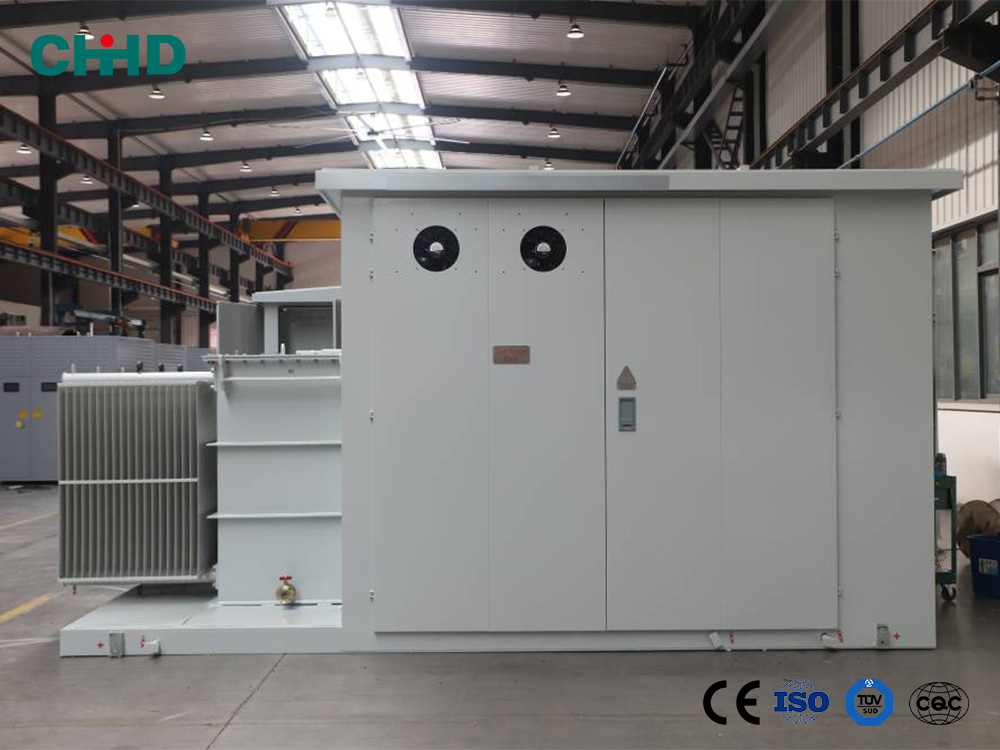

The containerized box substation is a new type of power equipment that integrates high-voltage switchgear, transformers, low-voltage distribution equipment, and other functions within a standard shipping container. This substation offers high flexibility and portability, making it widely applicable for urban distribution, temporary power needs, outdoor construction, and special locations. With its rapid deployment, ease of mobility, and reliable safety features, the containerized box substation has become an increasingly important component of modern power systems.
Key Features
1. Modular Design: The containerized box substation adopts a modular design, allowing components to be configured according to actual needs, thus meeting various power supply requirements of different users.
2. Ease of Transportation and Installation: Based on a standard shipping container, the equipment is easy to transport, enabling quick arrival at the site and installation, thereby shortening the construction period.
3. High Safety: The enclosure is made of high-strength materials, providing excellent protection against harsh weather and external impacts, ensuring the long-term safe and stable operation of the equipment.
4. Good Heat Dissipation: Equipped with advanced ventilation and cooling systems, it maintains stable operation under high-load conditions, effectively extending the service life of the equipment.
5. Eco-Friendly and Energy Efficient: The containerized box substation emphasizes energy conservation and environmental protection during its design and manufacturing processes, using high-efficiency energy-saving transformers that comply with modern green power development requirements, thus minimizing environmental impact.
6. Flexible Application Scenarios: Suitable for power supply needs in various environmental conditions, it is widely used in urban construction, temporary job sites, outdoor events, and emergency power supply.
Application Areas
Urban Distribution Systems: Suitable for urban power distribution networks, providing reliable electrical support for commercial centers, office buildings, and residential communities.
Temporary Power: Widely used in large events, construction sites, and other locations requiring temporary power supply, allowing for quick response to users' electricity demands.
Outdoor Construction and Special Locations: Provides safe and stable power supply in remote areas and special environments, supporting various construction projects.
Technical Parameters
Rated Voltage: Customizable according to customer needs, with common voltage levels of 10kV, 20kV, or 35kV.
Capacity Range: From several hundred kilovolt-amperes (kVA) to several thousand kilovolt-amperes (kVA), meeting power demands in different application scenarios.
Cooling Methods: Typically uses natural air cooling or forced air cooling to ensure efficient heat dissipation under various load conditions.
Conclusion
The containerized box substation, with its convenient transportation and installation methods, high safety, and flexibility, has become an essential piece of equipment in modern power systems. Our company offers a variety of specifications for containerized box substations that can be customized to meet specific customer requirements, ensuring the safe, stable, and efficient operation of power systems.
| Product Model | Rated Capacity（kVA） | HV（KV） | Tapping Range（%） | LV（KV） | Connection Group | No-load Loss（W) | load loss （W）(120℃) | Short-circuit Impedance（%） | Dimensions (Length ×Width × Height) （mm) | Gauge（mm） | Total Weight（KG) |
| S11-M-30/10 | 30 | 6 6.3 6.6 10 10.5 11 | ±5 ±2×2.5 | 0.4 | Yyn0 Dyn11 | 100 | 630/600 | 4 | 705*510*930 | 400*400 | 290 |
| S11-M-50/10 | 50 | 130 | 910/870 | 4 | 830*520*1020 | 400*400 | 400 | ||||
| S11-M-63/10 | 63 | 150 | 1090/1040 | 4 | 850*520*1024 | 400*400 | 395 | ||||
| S11-M-80/10 | 80 | 180 | 1310/1250 | 4 | 860*540*1040 | 400*400 | 465 | ||||
| S11-M-100/10 | 100 | 200 | 1580/1500 | 4 | 890*570*1030 | 400*400 | 510 | ||||
| S11-M-125/10 | 125 | 240 | 1890/1800 | 4 | 935*580*1130 | 400*400 | 630 | ||||
| S11-M-160/10 | 160 | 280 | 2310/2200 | 4 | 1175*725*995 | 550*550 | 690 | ||||
| S11-M-200/10 | 200 | 340 | 2730/2600 | 4 | 1120*765*1035 | 550*550 | 765 | ||||
| S11-M-250/10 | 250 | 400 | 3200/3050 | 4 | 1185*830*1095 | 550*550 | 930 | ||||
| S11-M-315/10 | 315 | 480 | 3830/3650 | 4 | 1255*880*1075 | 550*550 | 1085 | ||||
| S11-M-400/10 | 400 | 570 | 4520/4300 | 4 | 1400*1010*1170 | 550*550 | 1300 | ||||
| S11-M-500/10 | 500 | 680 | 5410/5150 | 4 | 1450*1045*1210 | 660*660 | 1450 | ||||
| S11-M-630/10 | 630 | 810 | 6200 | 4.5 | 1540*1080*1275 | 660*660 | 1680 | ||||
| S11-M-800/10 | 800 | 980 | 7500 | 4.5 | 1610*1150*1370 | 660*660 | 2010 | ||||
| S11-M-1000/10 | 1000 | 1150 | 10300 | 4.5 | 2070*1265*1850 | 660*660 | 2720 | ||||
| S11-M-1250/10 | 1250 | 1360 | 12000 | 4.5 | 2050*1265*1890 | 820*820 | 3150 | ||||
| S11-M-1600/10 | 1600 | 1640 | 14500 | 4.5 | 2155*1320*2010 | 820*820 | 3850 | ||||
| S11-M-2000/10 | 2000 | 1940 | 18300 | 5 | 1950*1950*1995 | 960*960 | 4570 | ||||
| S11-M-2500/10 | 2500 | 2290 | 21200 | 5 | 2060*2050*2610 | 1080*1080 | 4980 |
| Key attributes | |
| Phase | Three |
| Other attributes | |
| Place of Origin | Jiangsu, China |
| Brand Name | HuaDing |
| Model Number | S11 |
| Coil Number | 3 |
| Use | power |
| Coil Structure | layer coil |
| Certification | CE ISO |
| Standard | IEC60076 |
| Type | Distribution Transformer |
| Frequency | 50/60HZ |
| Input Voltage | 6-11kV |
| Output Voltage | 0.38-0.44kV |
| Tapping Range | ±5，±2×2.5 |
| Warranty | 2 Years |
| Winding material | Copper\Aluminum |
| Cooling Method | ONAN |
| Ambient Temperature | -25℃ to 40℃ |
| Operating Altitude | Below 1000 meters |
| Delivery Time | |||
| Quantity (Pieces) | 1-5 | 6-10 | ＞10 |
| Delivery Time (Days) | 22 | 27 | To be determined |
| Product Specifications and Model | Standard | Quantity (Units) | Price (USD) | ||
| SL11-M-25/10/0.4 | Aluminum , IEC | 1 | 1060 | ||
| SL11-M-30/10/0.4 | Aluminum , IEC | 1 | 1130 | ||
| SL11-M-50/10/0.4 | Aluminum , IEC | 1 | 1310 | ||
| SL11-M-63/10/0.4 | Aluminum , IEC | 1 | 1530 | ||
| SL11-M-80/10/0.4 | Aluminum , IEC | 1 | 1650 | ||
| SL11-M-100/10/0.4 | Aluminum , IEC | 1 | 1800 | ||
| SL11-M-125/10/0.4 | Aluminum , IEC | 1 | 1990 | ||
| SL11-M-160/10/0.4 | Aluminum , IEC | 1 | 2230 | ||
| SL11-M-200/10/0.4 | Aluminum , IEC | 1 | 2490 | ||
| SL11-M-250/10/0.4 | Aluminum , IEC | 1 | 2830 | ||
| SL11-M-315/10/0.4 | Aluminum , IEC | 1 | 3200 | ||
| SL11-M-400/10/0.4 | Aluminum , IEC | 1 | 3570 | ||
| SL11-M-500/10/0.4 | Aluminum , IEC | 1 | 4420 | ||
| SL11-M-630/10/0.4 | Aluminum , IEC | 1 | 5210 | ||
| SL11-M-800/10/0.4 | Aluminum , IEC | 1 | 7140 | ||
| SL11-M-1000/10/0.4 | Aluminum , IEC | 1 | 9210 | ||
| SL11-M-1250/10/0.4 | Aluminum , IEC | 1 | 9770 | ||
| SL11-M-1600/10/0.4 | Aluminum , IEC | 1 | 11500 | ||
| SL11-M-2000/10/0.4 | Aluminum , IEC | 1 | 14490 | ||
| SL11-M-2500/10/0.4 | Aluminum , IEC | 1 | 16220 | ||
| PS：Ex-factory Price for Standard Product,Custom Products Available for Inquiry. | |||||

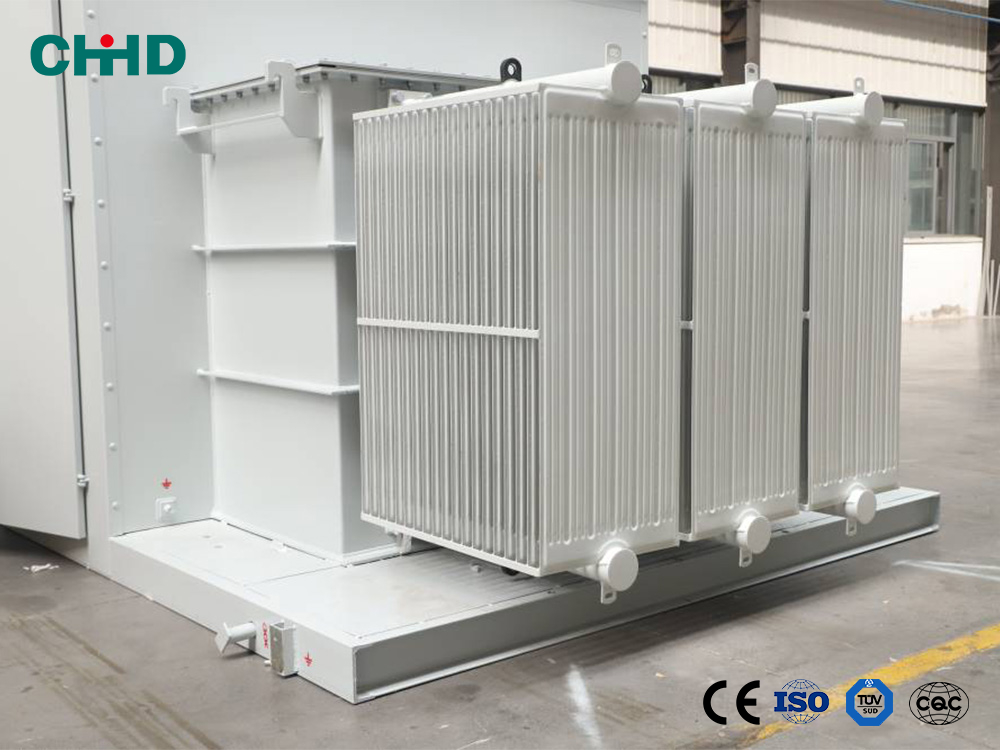

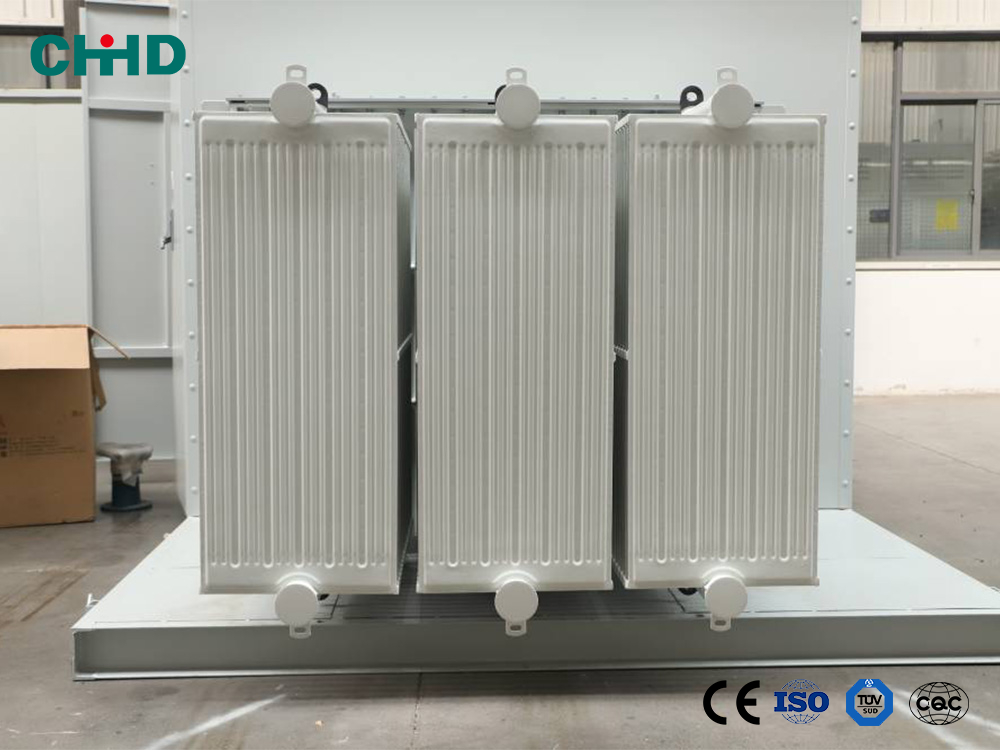

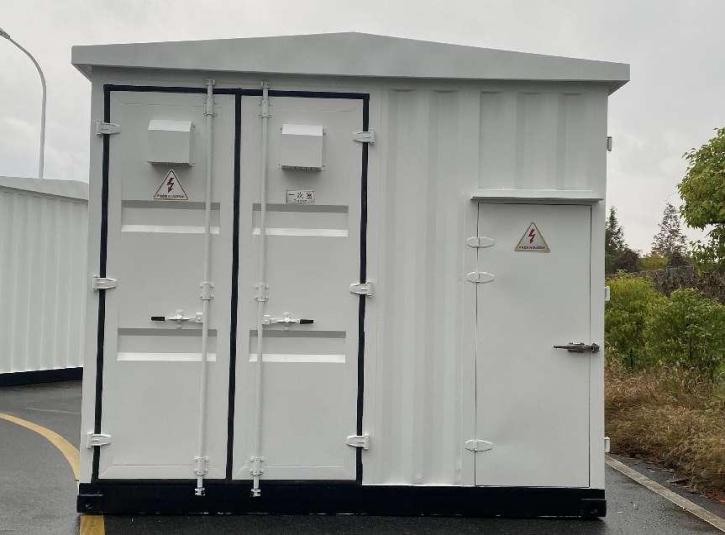

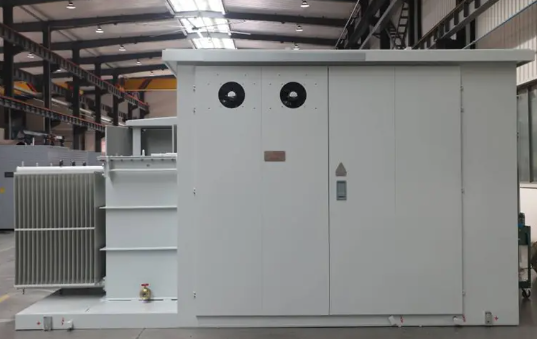

Product Picture
 |  |

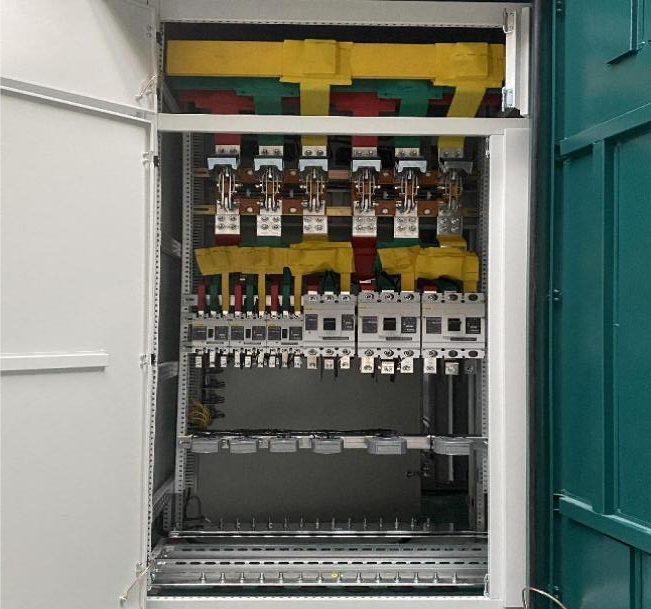

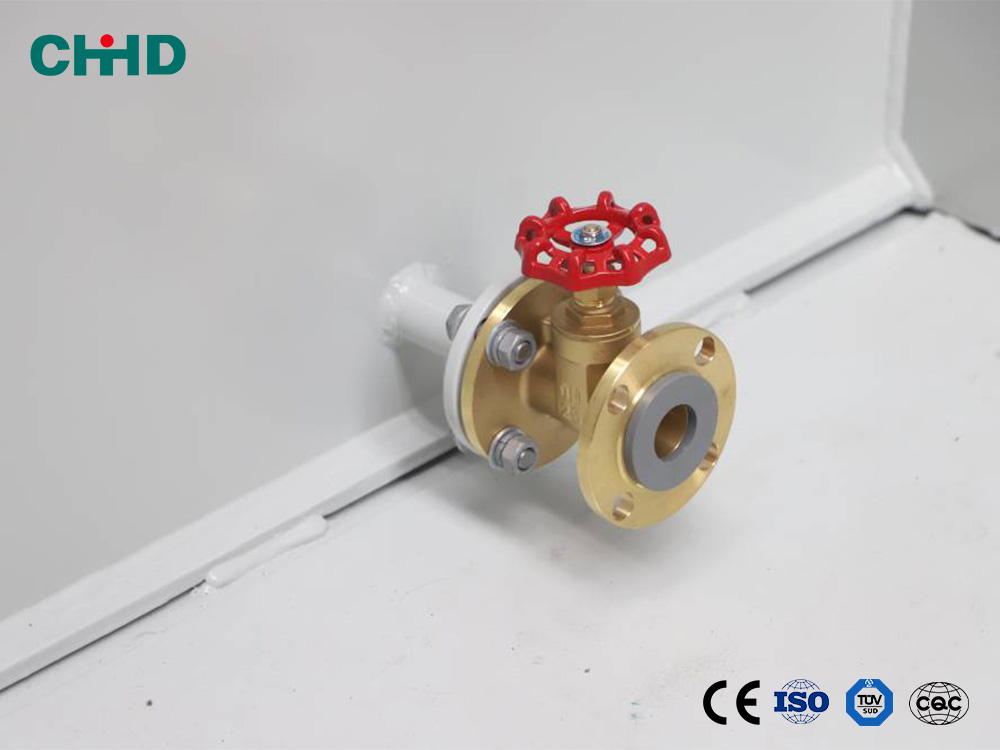

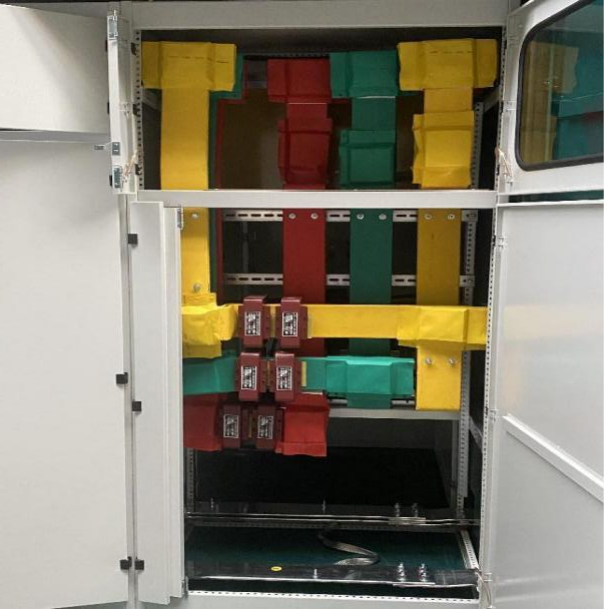

High quality components
 |  |
Products advantages：
Good heat dissipation effect and strong overload capacity.
The shell is resistant to sun exposure and corrosion, protection level: IP54
All the operations are performed from front face,even the access to the tap changer of the transformer compartment
Certifications
FAQ
Q:what's your major products?
A: oil immersed transformer, dry type transformer, Transformer Substation, High and Low Voltage Switchgear
Q: Can your product be customized?
A: Considering differences in voltage, frequency and other speciality of transformer product in different countries and regions, our product can be customized according to your requirements
Q: When can l get the price?
A:Usually we quote within 24 hours after we get your inquiry.
Q: What about lead or shipping time?
A: The lead time depends on the quantity you ordered, generally within 15 days upon receipt of advance payment.
Q: What is the price of shipping?
A: Depending upon the port of delivery, prices varies.
Q: Do you offer guarantee for the products?
A: Yes. We offer at least two years guarantee for all of our transformers.
Q: Your Advantage?
A: 61 years experience, Advanced production equipment, Stable quality, Fast delivery, Professional & good ⪻ompt service. Also some free parts can be provided for you.
